Reboque basculante agrícola novo Techmont Anhänger / Trailer / Remorque / Rimorchio / Прицеп двухоосный бортовой / Przyczepa dwuosiowa PTD16 12 t

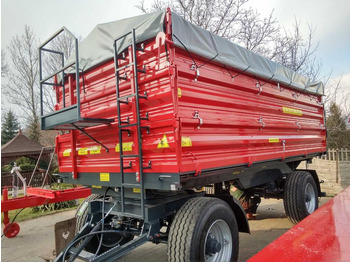

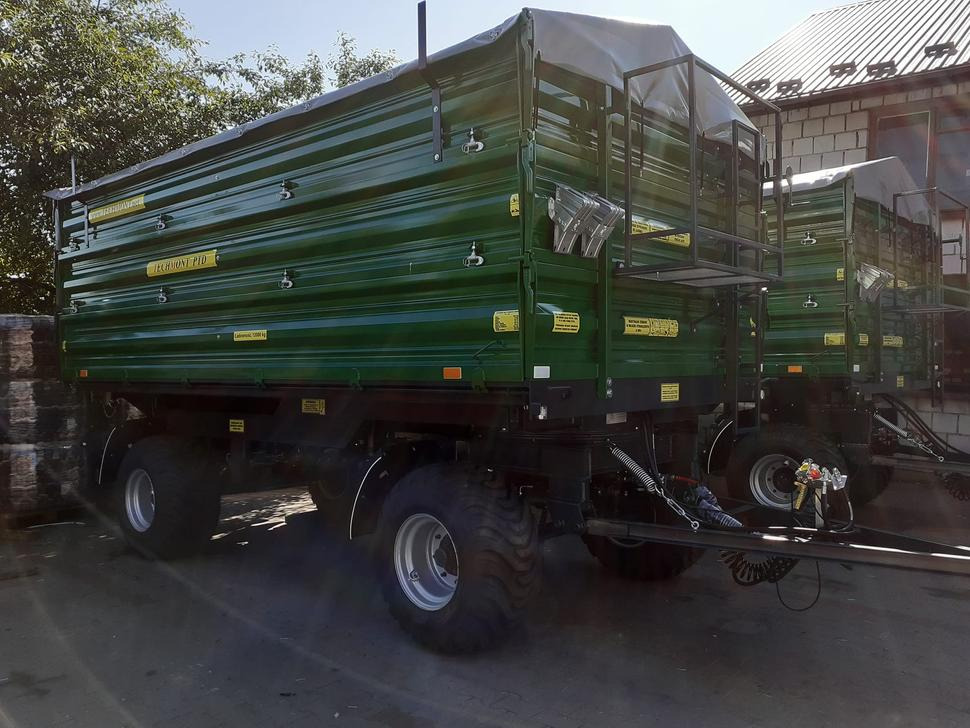

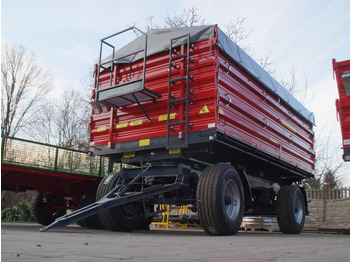

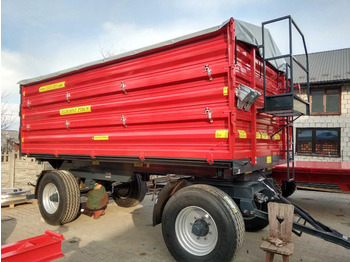

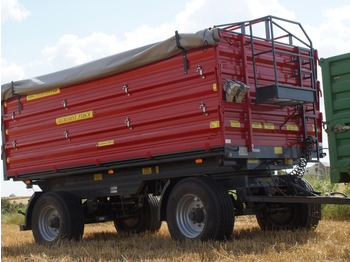

Techmont Double axle trailer PTD16 12 t

Techmont's PTD trailers have a wide range of equipment as standard. The three-way tipping of the cargo box increases the functionality of the trailer. A ball-and-swivel, stable tipping system, proven, heavy-duty load frame profiles and high-quality, reliable and durable running axles distinguish our company's product from other products on the market. Profiled walls with industrial strength guarantee a long service life for the trailer. Standard equipment includes a window with a slider in the rear wall.

Technical data:

Payload capacity 12000 kg

Unladen weight 3600-4400 kg

Permissible total weight 16400 kg

Cargo volume 12-19.2 m3

Cargo area 12.3 m2

Length of cargo box inside 4950 mm

Length of load body outside 5050 mm

Width of load body inside 2450 mm

Width of load bed outside 2550 mm

Overall dimensions (length/width/height*) 6550/2550/2150* height 2660-2760 mm

Box wall height 500+500 mm

Platform height from the ground 1150-1250 mm

Wheelbase 1900 mm

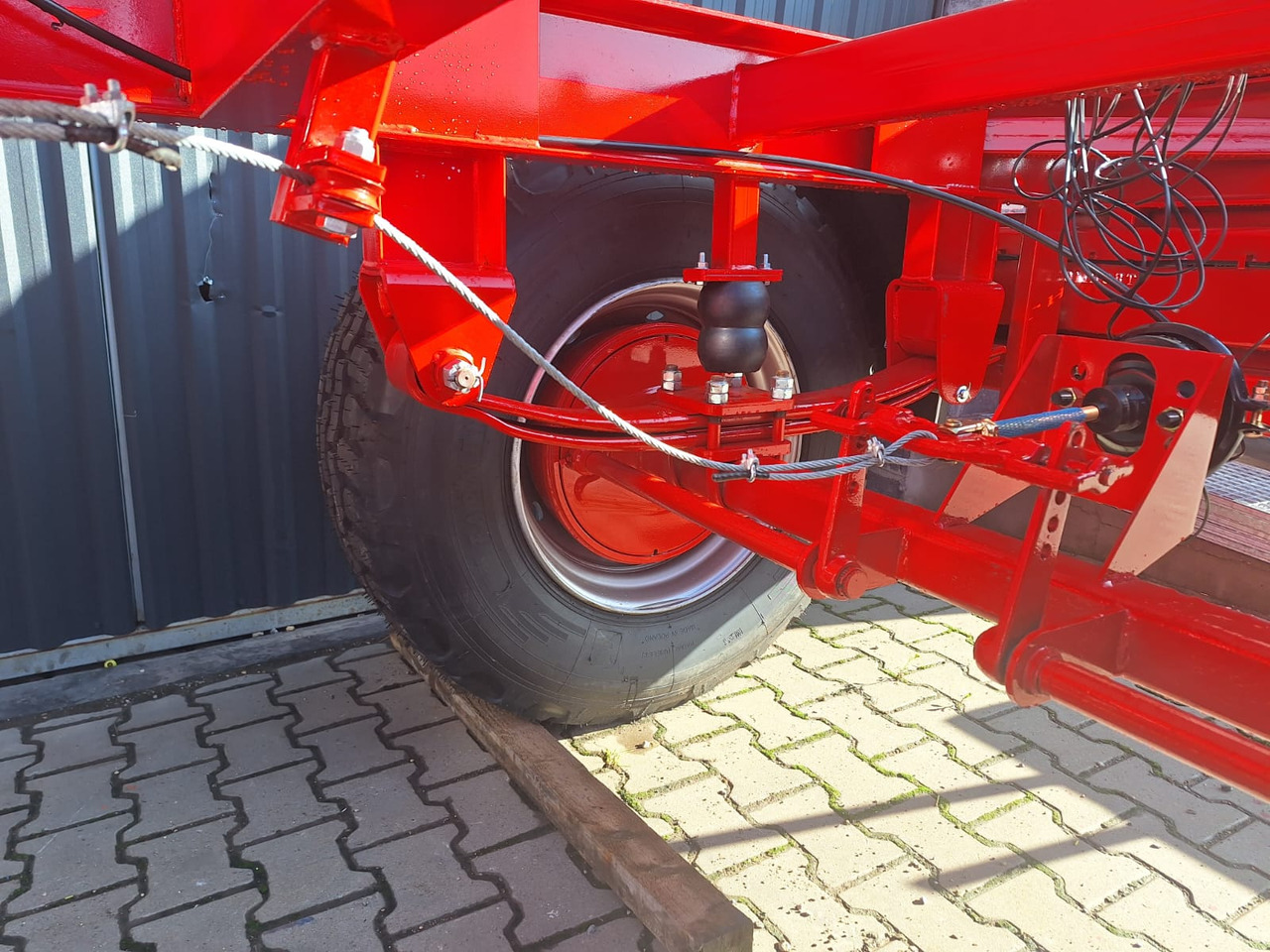

Suspension parabolic springs, torsion bogie

Drawbar type Y or V

Tire size 15.0/70-18

Three-way tipping system

Design speed (degrees) 30/40 km

Tipping angle of the cargo box (rearward/side) (degrees) 50/45

Telescopic cylinder (stroke/oil demand/pressure) 1900/16L/200 bar

Minimum tractor power requirement 85 hp

Standard equipment of the trailer:

Working platform on the front side

Tarpaulin with frame

Sideboards with extensions 2 x 50 cm

Wedges mounted on the front side

All-round sideboard locking system at the edge

Check valves to regulate the tilt of the cargo box (security)

Securing of the load bed (steel cable with handles)

Hand crank-screw brake

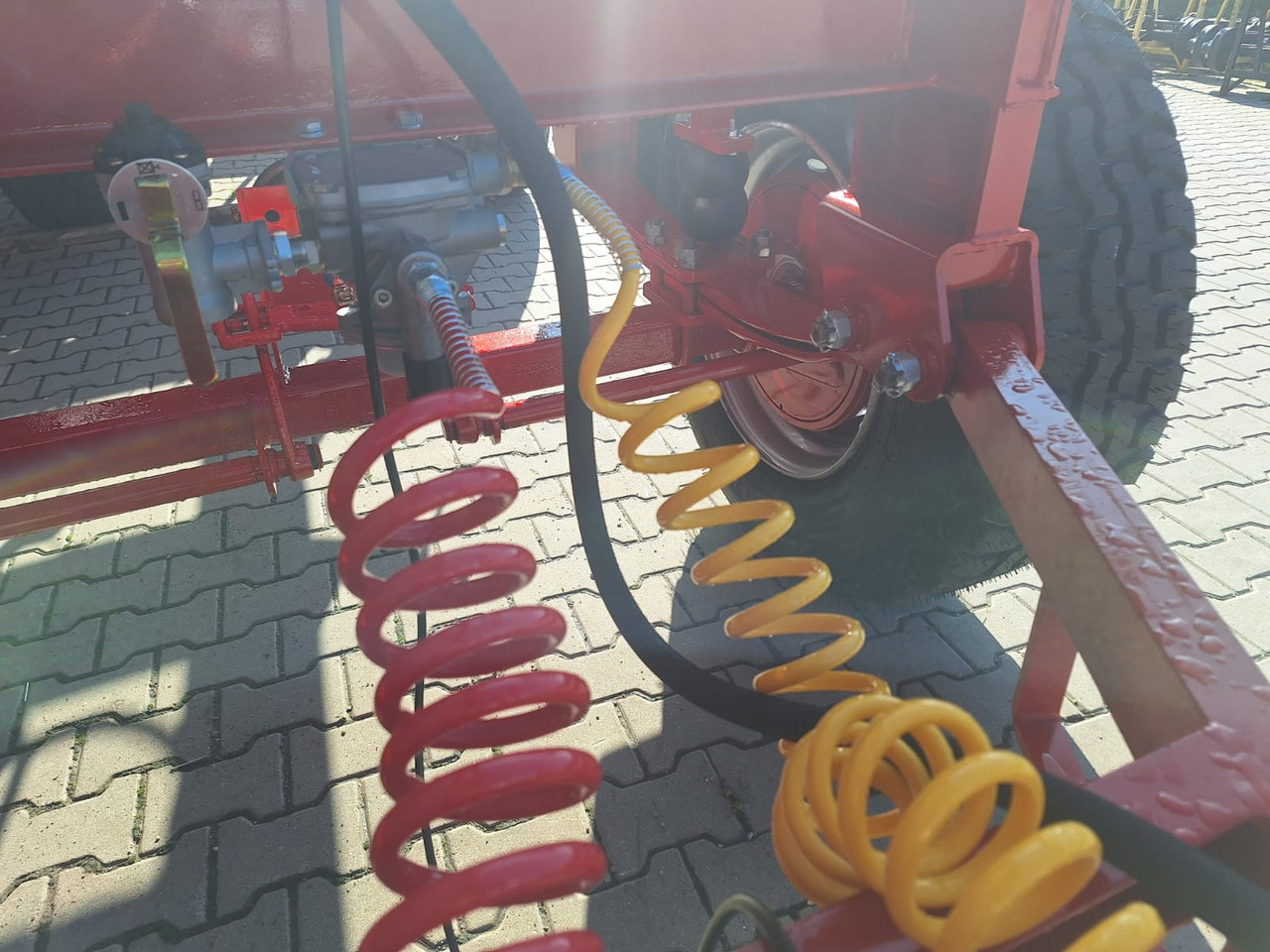

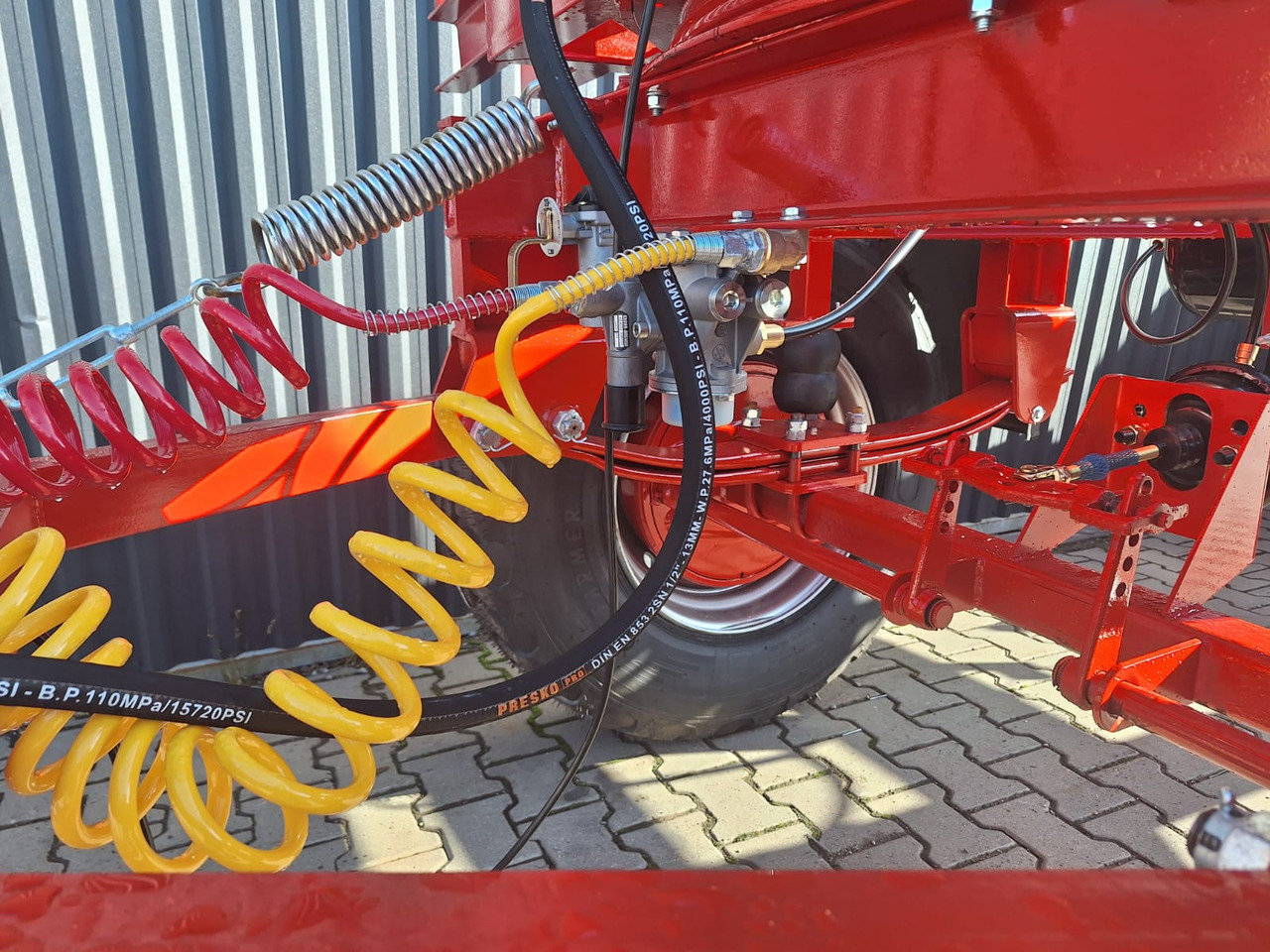

Single-wire or dual-wire brake system

Rear hitch

Electrical outlet

Sideboard pull cable system including trigger bolt

Payable additional equipment:

- Spare wheel with fastening lugs

- Additional row of sideboards 500+500+500, 600+600+600, 800+800+800 mm

- pneumatic and hydraulic installation for towing a second trailer

tires:

- 500/50-17

- 15/70-18

- 385/65 R22,5

- rear automatic hitch

- reinforcement of the upper frame at the extension 3 x 500 mm

- 4 mm floor plate

- LED lighting on the trailer
