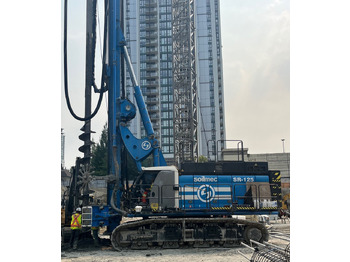

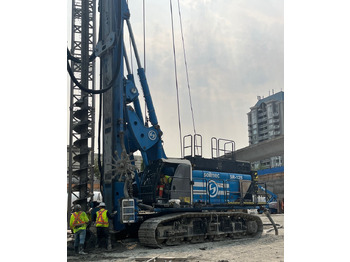

Locação financeira de Soilmec SR-125
Publicado: 10meses. 32ds.
Publicado: 10meses. 32ds.
United Kingdom, Omnia Machinery, 1 Bentley Avenue, Cowpen Lane Industrial Estate,
Billingham, TS23 4BU5,500 Hours
4 x 13.5m Mechanical Locking Kelly Bar – 200mm stub
CAT C18 Acert Tier 4f Engine – 630 HP
Max Drill depth – 155 ft.
Main Winch SW240
Equipped with Soilmec DMS System
Large Diameter Pile Base Kit
– Flange for Casing Driving – 2.5m
Cathead for LDP CFA 2nd line Pull
CSP Technology Kit
– 4th line pull kit 72.2 ft. + 19.7 ft.
– Max augured depth with cleaner – 92’
– Max casing length – 72’
Additional Cost Tooling/Equipment:
CSP Tooling & Casing at Additional Cost:
– 914mm Casing
o (1) 19.5m casing, 914mm diameter, 12.7mm thickness
o (2) 1.5m cutting shoe, 914mm diameter, 30mm thickness
– Augers
o (2) CSP Auger Lead 25HD5, length 2m, diameter 830mm, thickness 25/40mm
o (4) Intermediate Element, length 6m, diameter 830mm, thickness 20mm
– 1016mm Casing
o (1) 19.5m casing, 1016mm diameter, 12mm thickness
o (2) 1.5m cutting shoe, 1016mm diameter, 30mm thickness
– Augers
o (2) CSP Auger Lead 25HD5, length 2m, diameter 930mm, thickness 25/40mm
o (4) Intermediate Element, length 6m, diameter 930mm, thickness 20mm
CFA & FDP Tooling at Additional Cost:
1. 750mm 25HD5 CFA Augers
a. (1) Intermediate element – 4m
b. (4) Intermediate element – 6m
c. (2) Auger Lead – 1.5m
d. (1) Rock Auger Lead – 1.5m
2. 900mm 25HD5 CFA Augers
a. (1) Intermediate element – 4m
b. (4) Intermediate element – 6m
c. (2) Auger Lead – 1.5m
d. (1) Rock Auger Lead – 1.5m
e. (1) Auger Extension .5m
f. (1) Adaptor F 25HD5 to M XHD5
3. DP Rods
a. (4) MF Rod 6m
b. (1) MF Rod 3m
c. (1) MF Rod 2m
d. (1) MF Rod 1m
4. DP Tools 450mm
a. (2) Conical DP Tool 3m
b. (1) Auger Lead 1m
c. (1) Auger Lead 2m
d. (1) Auger Lead 3m
5. DP Tools 600mm
a. (2) Conical DP Tool 3m
b. (1) Auger Lead 1m
c. (1) Auger Lead 2m
d. (1) Auger Lead 3m
Operating Weight: 300,000 lbs.
