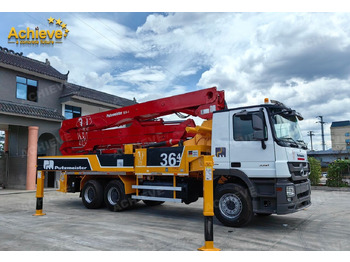

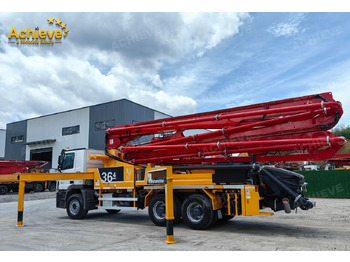

Locação financeira de PUTZMEISTER Mercedes-Benz M36-4 2018 ACTROS 3341【ACHIEVE】TOP CONDITION!!!

2018 ACTROS 3341【ACHIEVE】TOP CONDITION!!!

M36-4Z 2013 Achieve Putzmeister 36.4M Cement Pumps For Sale Hot Selling M36-4Rz Concrete Pump Truck

The Efficient All-Rounder Truck-Mounted Concrete Pump in its Class

The truck-mounted concrete pump M36-4 reaches around 36 m, demonstrating enormous flexibility. Because the Z-folding makes it very adaptable, not least because of the optimal slip properties. Whether it is in the production hall, under bridges and underpasses or for the construction of multi-storey buildings, the M36-4 is very suitable for versatile work and with ease because we have further optimised the entire machine with respect to its weight.

This allows more scope for loading accessories and operating materials, because the M36-4 offers high reserves with its surprisingly low weight in order to operate legally on all roads. You therefore easily reach the next place of use quickly, and economically.

Link to Reach Forecast App for M36-4 with Ergonic3. EU Version

Key Features

Smoother, more flexible 4-arm placing boom with Z fold system, lower unfolding height and optimum slip characteristics

Versatile use on job sites, whether operating in low buildings, concreting ceilings, working on base plates, etc.

Work efficiently thanks to logical, sophisticated ergonomics and intuitive, simple operation of the Ergonic® 2.0 control system

All information on the radio remote control display. Complete control and all the information at the workplace at all times

High load thanks to weight reserves

Low support widths thanks to flexible support and space-saving structures (optional)

Robust and stable due to reinforced base structure, compact boom pedestal and intelligent boom line installation

Maintenance- and service-friendly as a result of its optimum accessibility and consistent screw concept

Lower service costs thanks to maintenance-free components, fewer different types of components (e.g. only three standard elbow types) and smaller quantities of functional fluids

General Information

Number of sections:4

Boom Style:Z-Folding

Vertical Reach:35.6 m

Horizontal Reach:31.4 m

Reach from Front of Truck:8.9 m

Reach Depth:23.1 m

Unfolding Height:8.5 m

End Hose Length max.:4 m

Delivery Line (DN + Pressure) :DN 125/5.5 mm/bar

Support width Standard (front-rear):5.5/7.2 m

Support width OSS (front-rear):4.0/5.9 m

Support width ESC (front-rear):4.0/5.1 m

Material Cylinder Diameter-Stroke Length:250/2100 mm

Output (piston side):160 m³/hr

Delivery Pressure (piston side):85 bar

Strokes (piston side):26

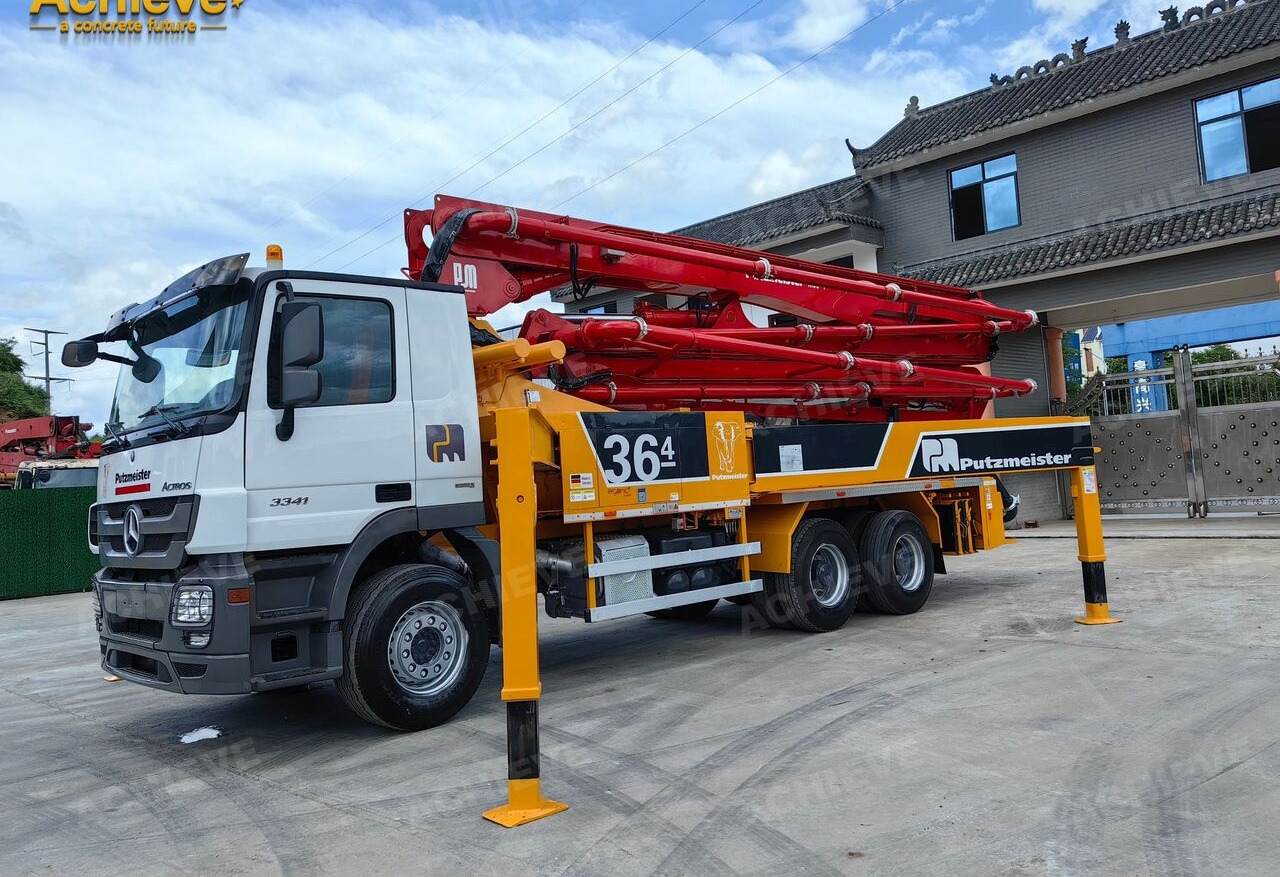

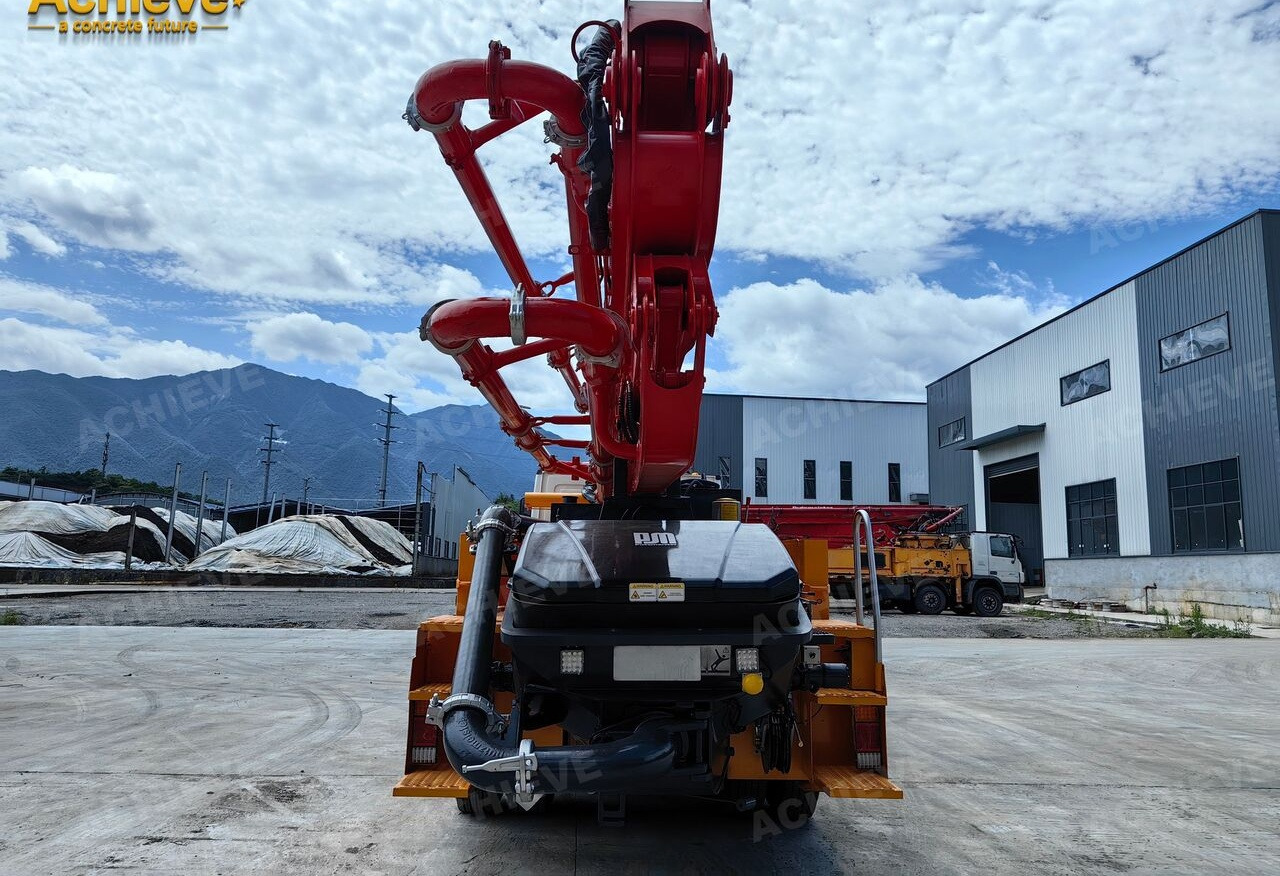

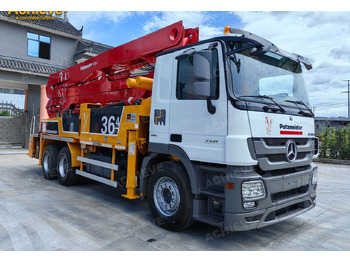

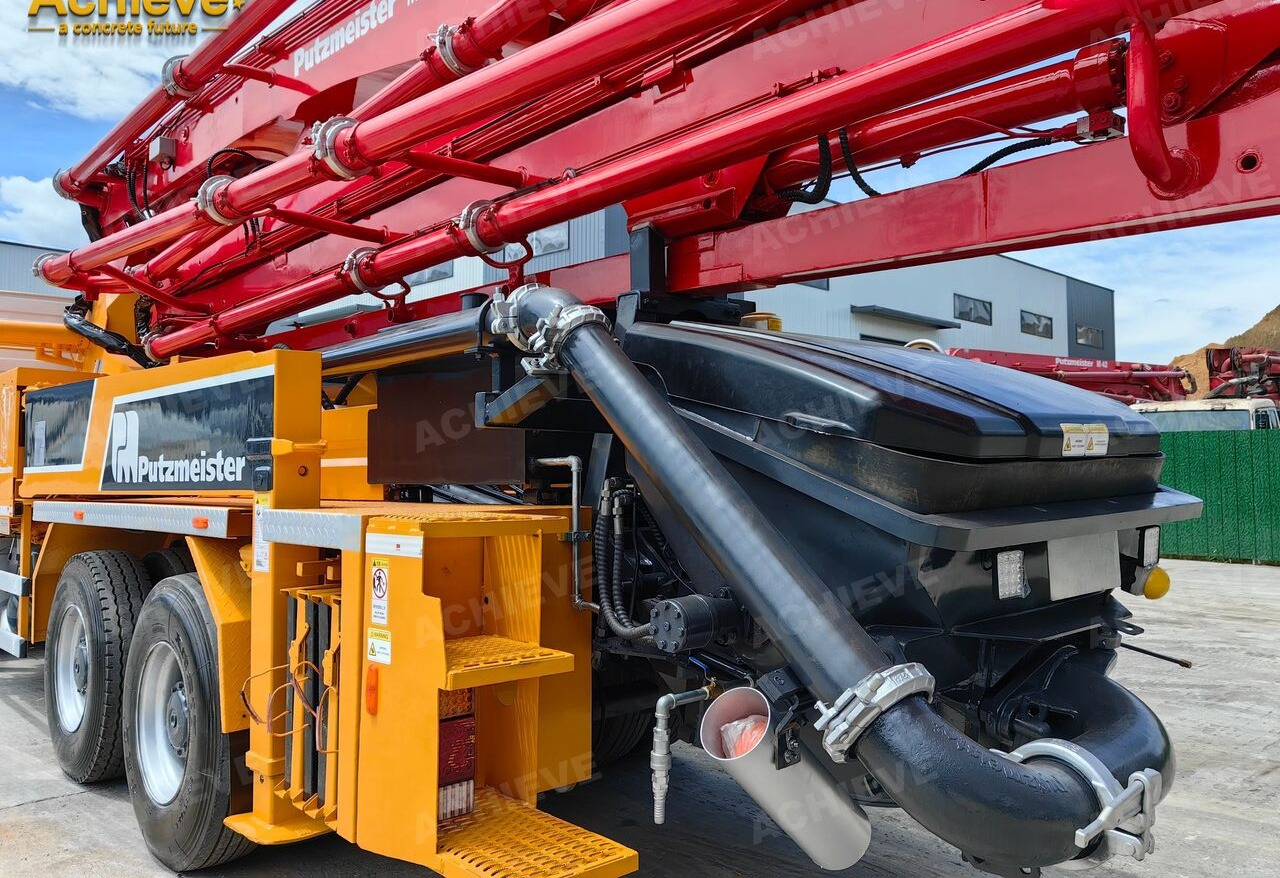

Putzmeister M36-4Z

Top Condition !!!

We are ACHIEVE team. The Qualified Supplier of CEMEX GROUP!!!

Regards,

Mr.Keeway HE

ACHIEVE INNOVATIONS
