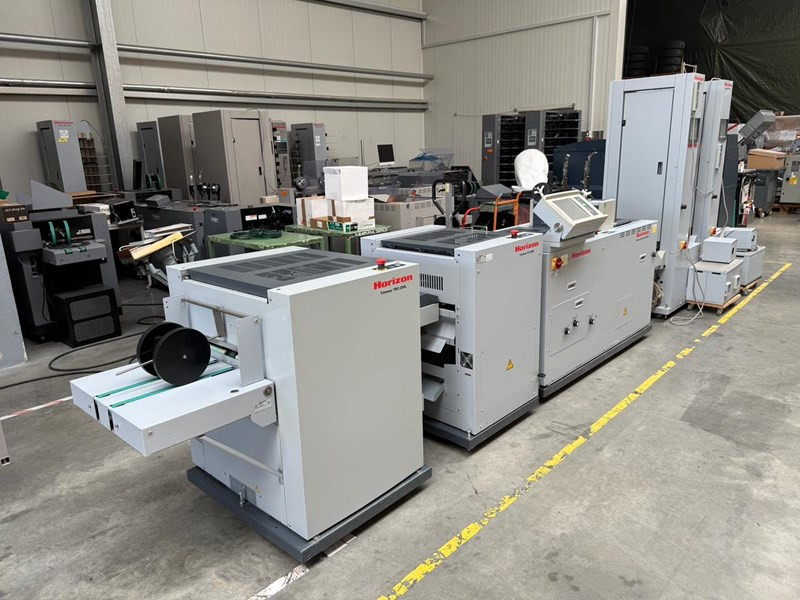

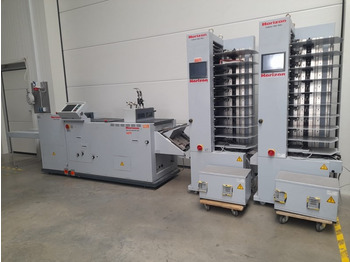

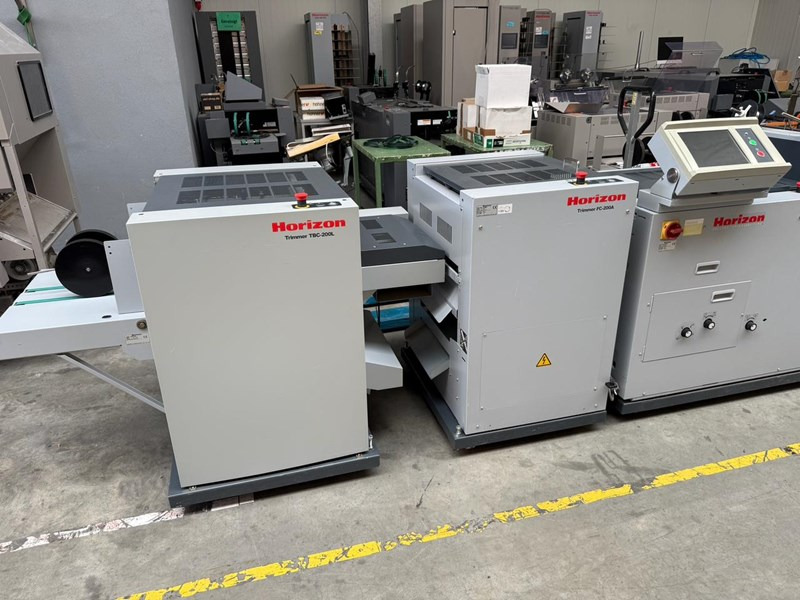

Máquina de impressão Horizon VAC-100 a VAC-100 c SPF-200 A FC-200 A

Number of Colours: 20

-

3 MONTHS WARRANTY

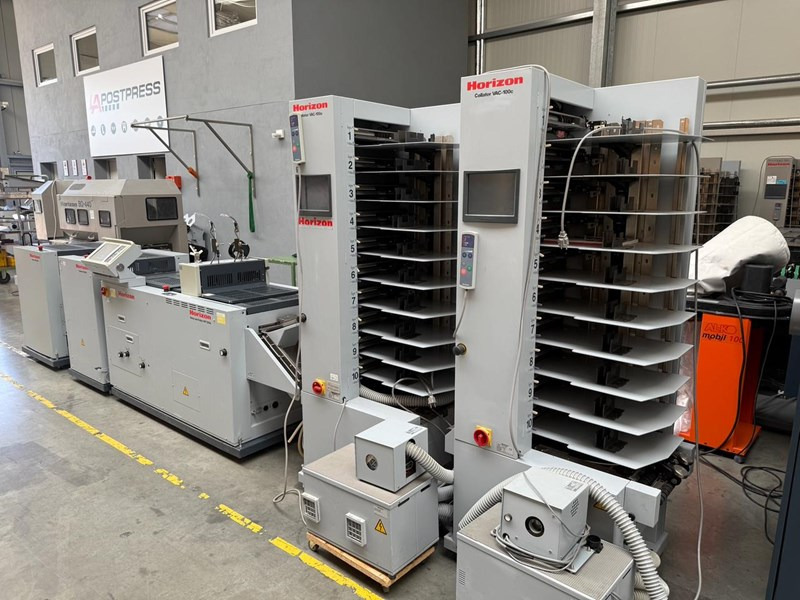

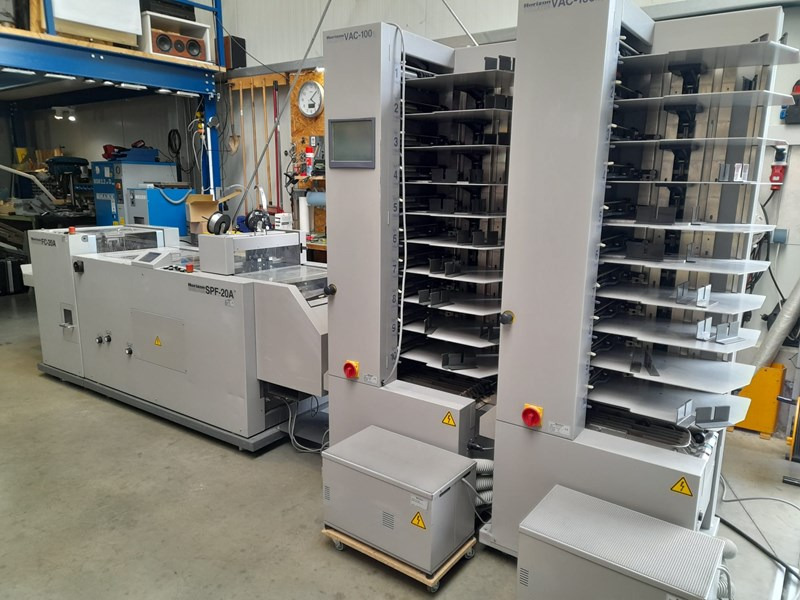

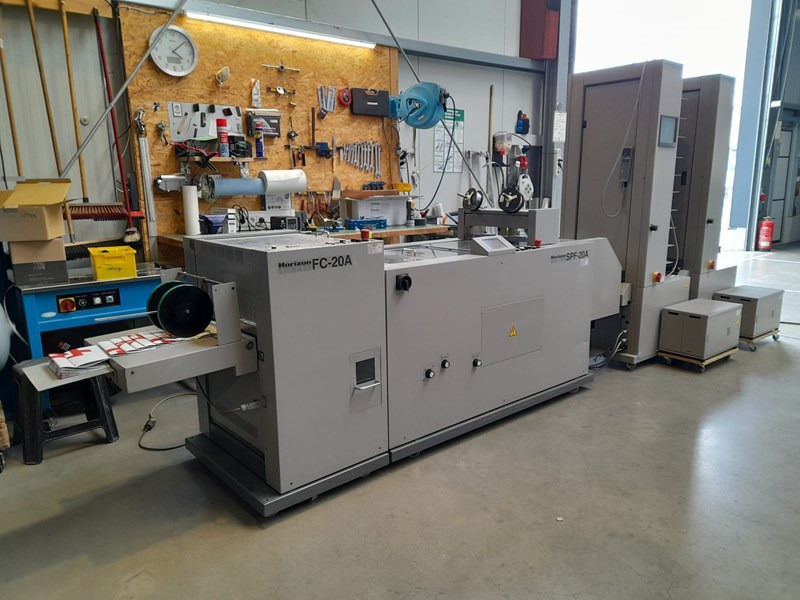

offer consists of:

- air-suction collator VAC-100a

- air-suction collator VAC-100c

- stitcher and folder SPF-200A

- fore-edge trimmer FC-200A

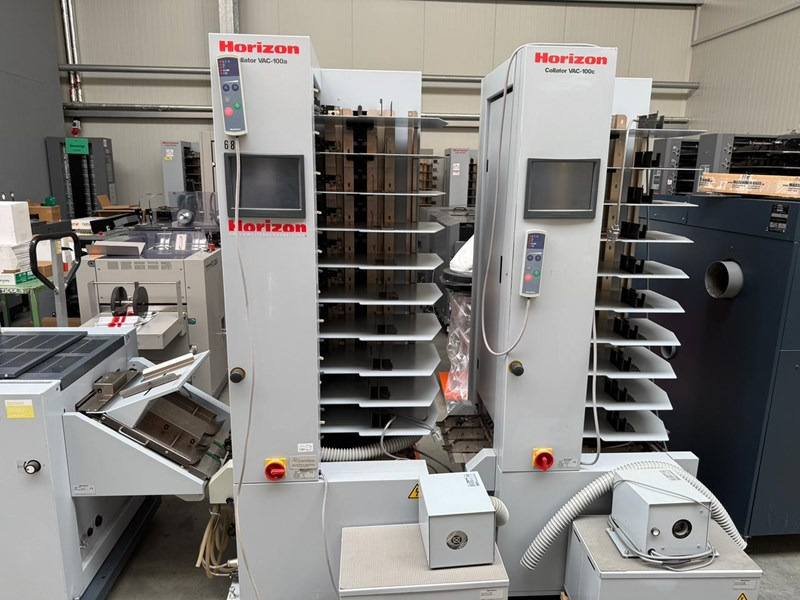

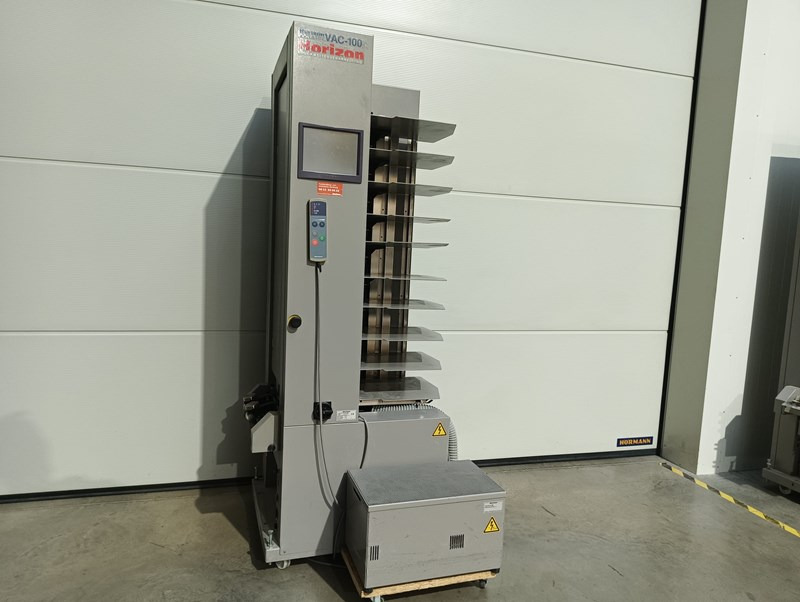

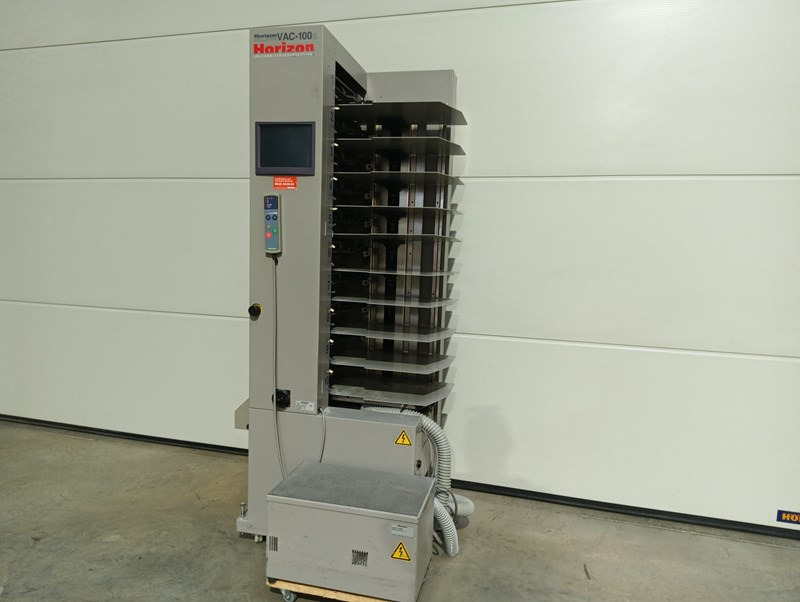

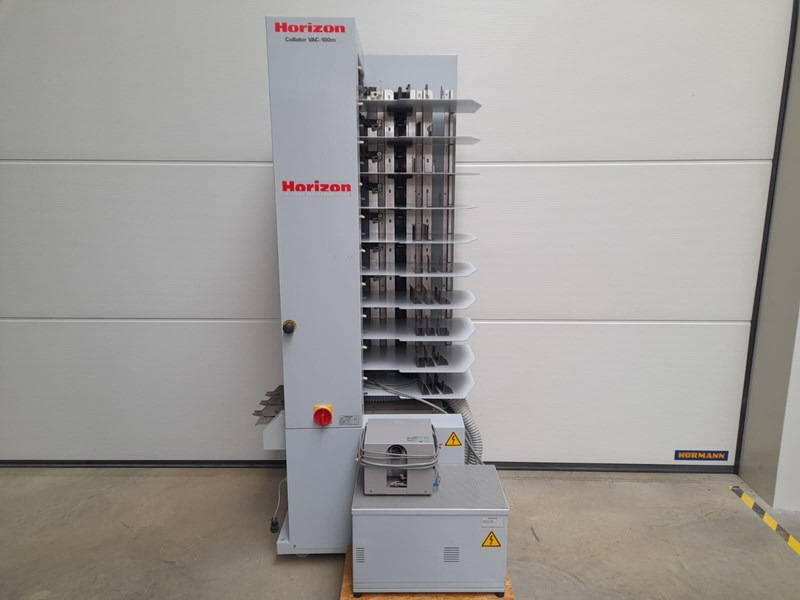

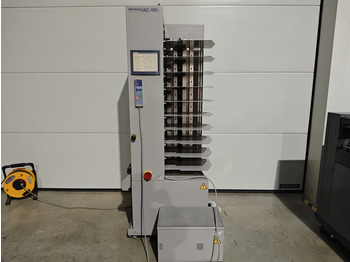

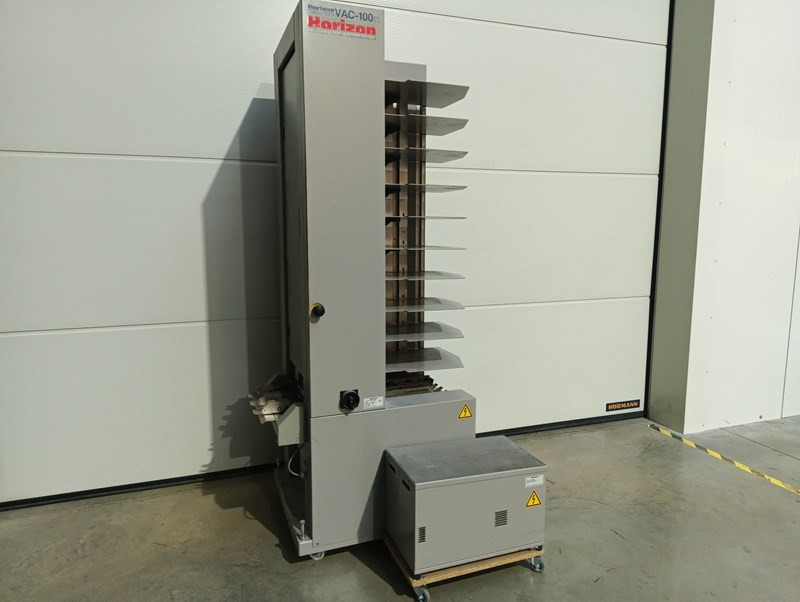

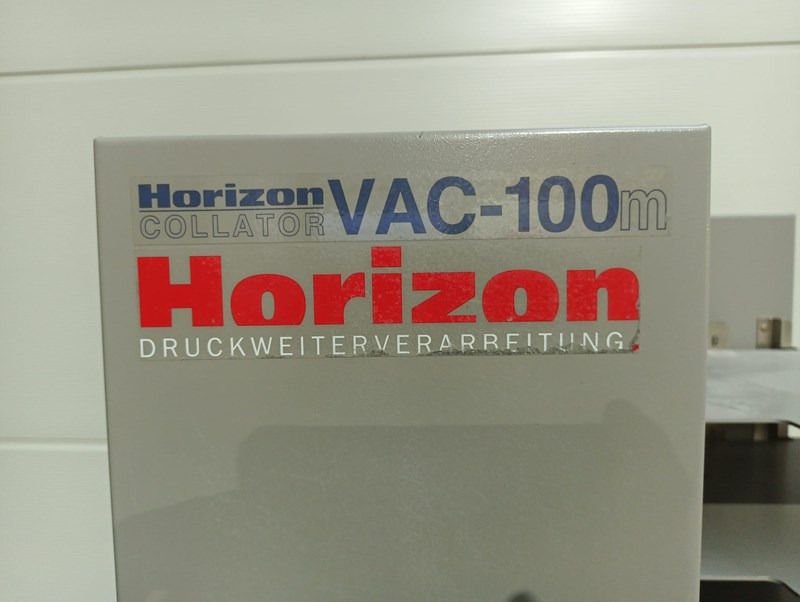

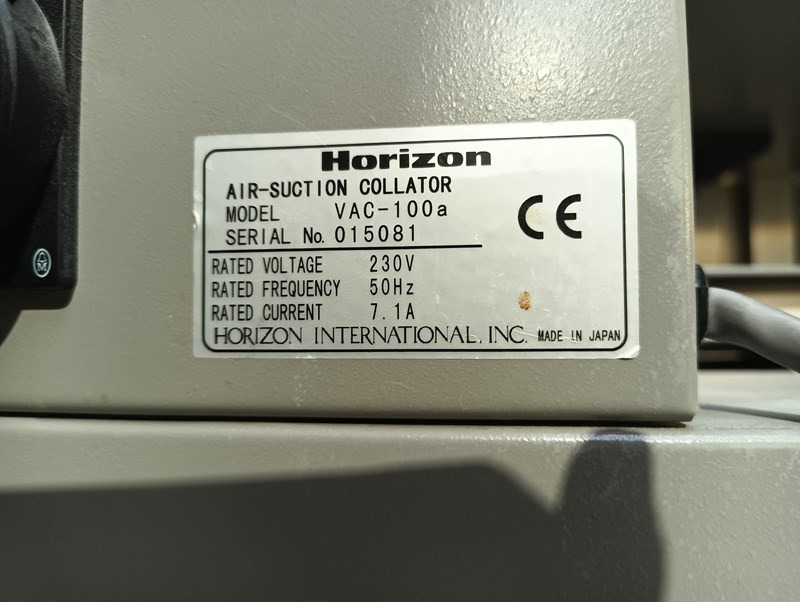

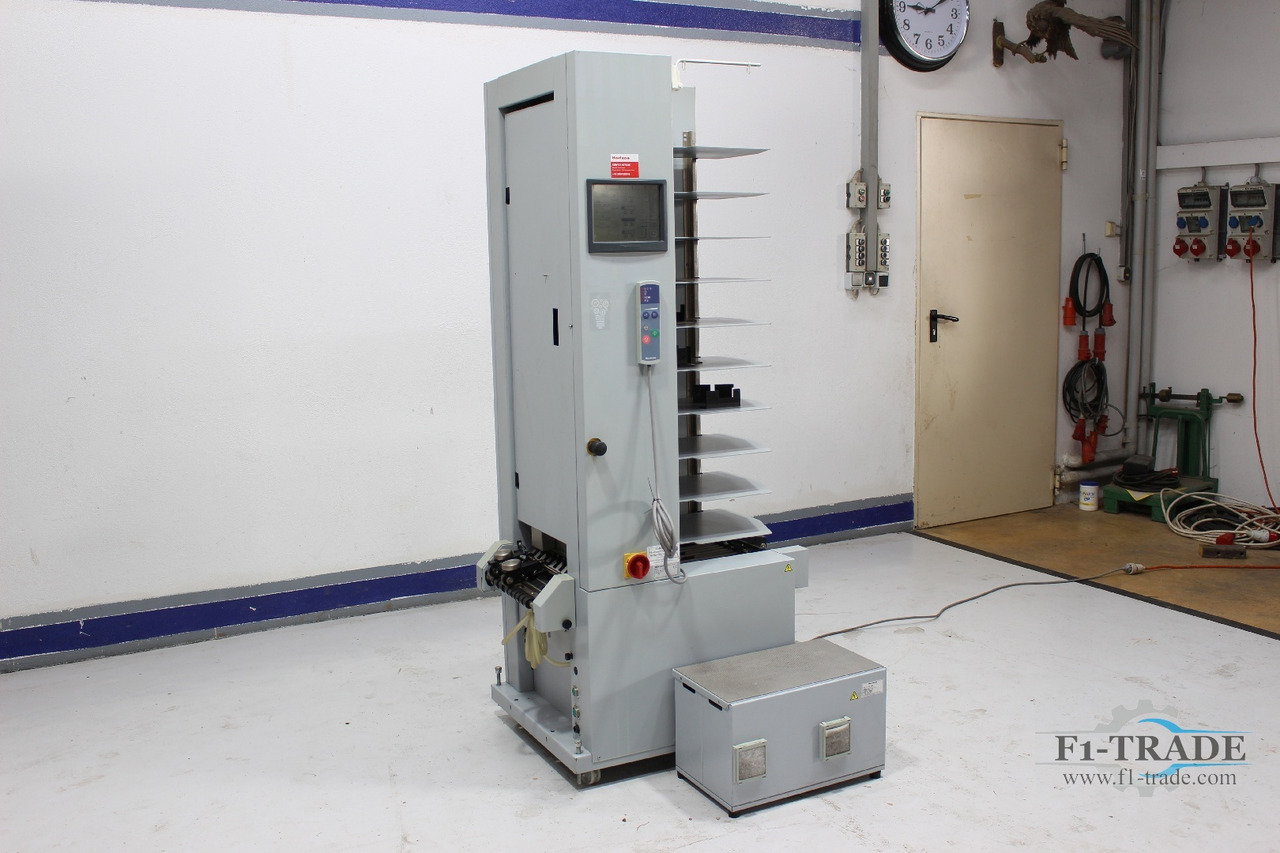

Horizon VAC-100a / VAC-100c

air-suction collator

- technology: touch & work

- model: air-suction collator

- bins: 10

- error avoidance: misfeed-,doublefeed- and jamming control

- saveable jobs: 9 memories for repeat orders

- extensibility: up to 6 collators (60 bins)

programs:

- doublecycle (nonstop-work)

- inject (simply and doubly)

- booklet making program

- block program

- selective collating

- sheet size: max. 500x350mm; min. 148x120mm

- paper weight: 40-250g/sqm

- loading height: 130mm/ bin

- production speed: max. 9.500 cycles/h

- power: 230V; 50/60Hz - 1,86kW

- dimensions: 842x652x1.961mm

- weight: each 310kg

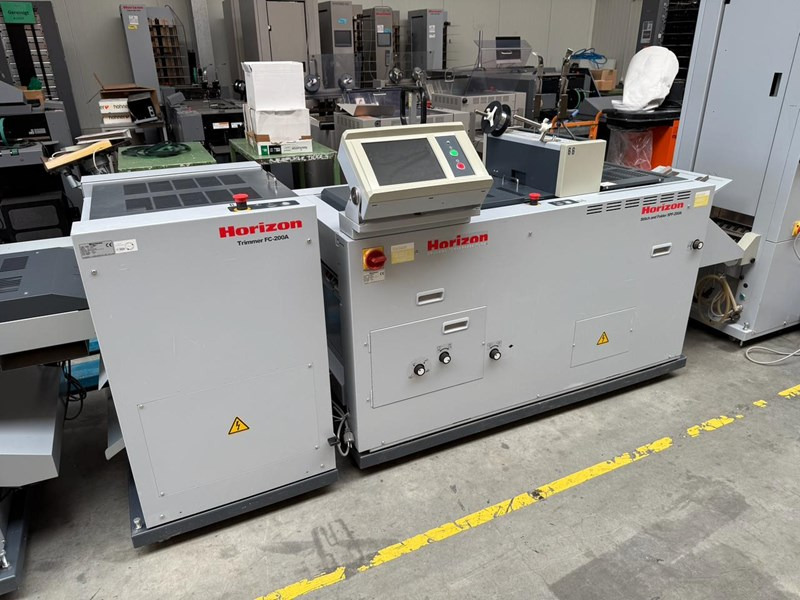

Horizon SPF-200A

stitcher and folder:

- format adjustment: fully automatic

- DIN-size and standard fold types: preassigned

- saveable jobs: 200 memories for repeat orders

- stitching heads: 2 - expandable up to 4 stitching heads

- stapling options: topstitching, (side-, cornerstitiching optional equipment)

- ring eylete stitiching: with ring eyelet stitching heads possible

- inlet format:

max. 508x356mm;

min. 180x105mm

- processing strength:

max. 25 pages (80g/sqm)

- clip distance: min. 73mm

- stitching wire: 26 - 28

- production speed: max. 4.800 booklets/h

- power: 230V / 50Hz - 0,68kW

- dimensions: 1.625x810x1.070mm

- weight: 500kg

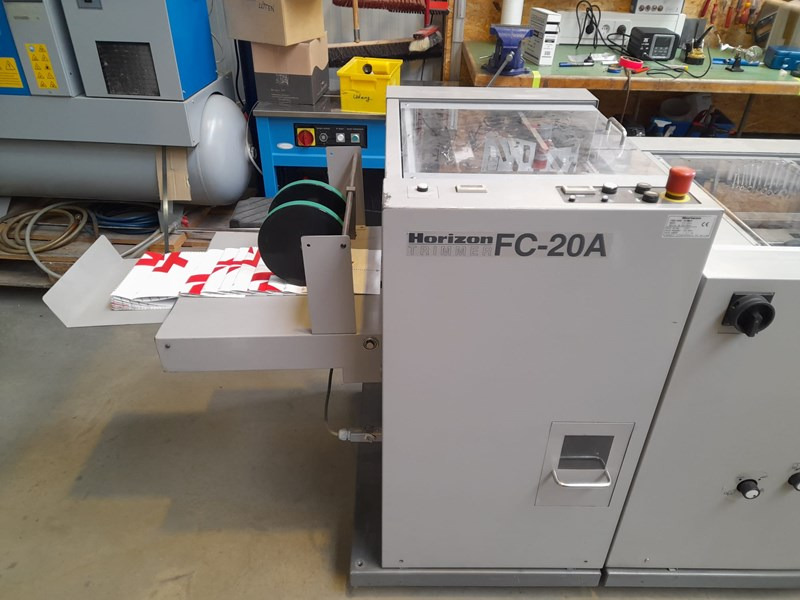

Horizon FC-200A

fore-edge trimmer:

- faulty set ejection

- booklet size:

max. 250mm; min. 85mm

- trimming:

from 2-20mm

- trimming thickness:

max. 100 pages (80 g/sqm)

min. 4 pages

- production speed: max. 4000 booklets/h

- power: 230V / 50Hz - 0,55kW

- dimensions: 655x810x1.070mm

- weight: 245kg

We can also organize the following for you:

packaging, loading, transport ( by ship or plane) including customs
