Máquina de embalagem novo ARK01 bagging machine

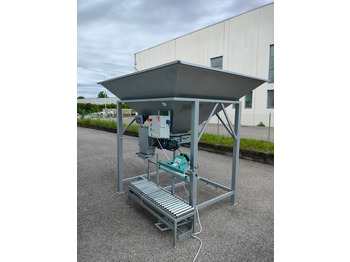

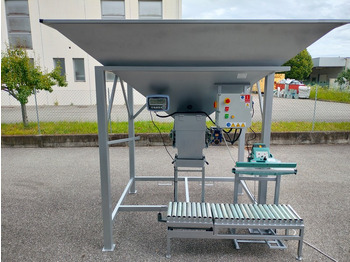

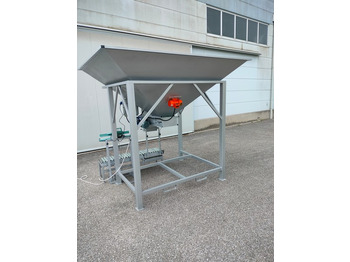

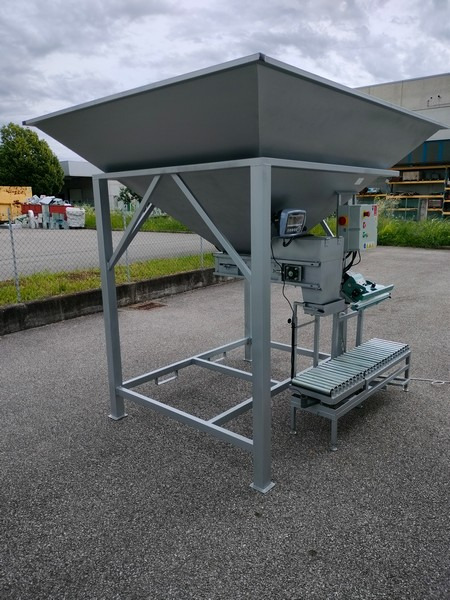

Semi-automatic bagging machine with hopper and belt conveyor equipped with precision scale and hot bag closing system. Ideal for the rapid bagging of pellets, aggregates, gravel, sand, slag, briquettes, coal, feed, rubber, asphalt, loose materials, granular materials, etc.

The operator places the empty bag under the bag lock and the bagging machine fills it quickly and with maximum precision thanks to the automatic weighing system. The extraction of the product from the hopper occurs via a conveyor belt driven by a gearmotor.

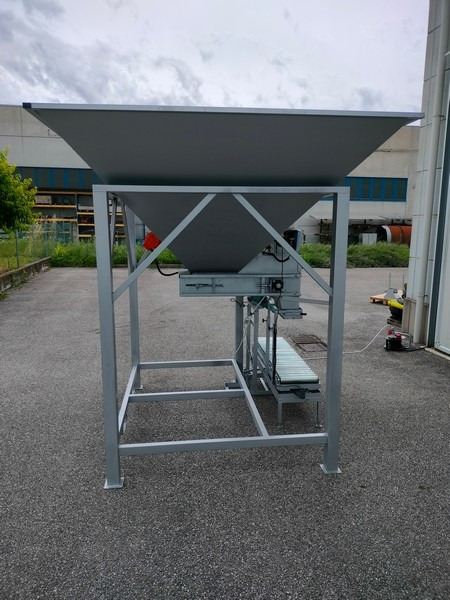

Wide-mouth hopper for easy filling with a mechanical shovel or other system.

Side and rear attachments for forklift forks to facilitate transport.

-Bagging capacity 3-4 tons/hour

-Hopper capacity 1.6 m³

-Overall dimensions L 210cm x W 260cm x H 225cm

-Support base on four legs with dimensions of 160cm x 190cm with inserts for movement with forklift

-Overall weight is approximately 400 Kg

-Precision weighing +/- 100 grams

-Possibility to prepare bags from 1 to 50 kg

-Continuous adjustment of material flow

-Power supply 380V

-3-layer painting (one anti-corrosive layer and 2 enamel layers)

-Instruction manual

-Made in EU

-CE
